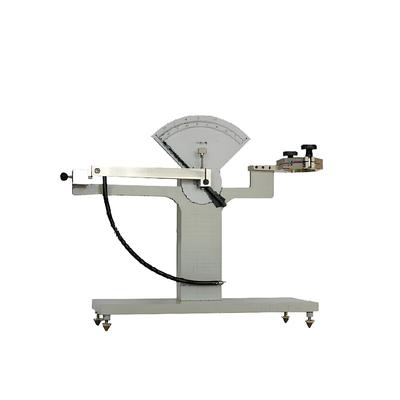

EQUIPMENT DETAILS FOR 5086- HD FILM PENDULUM IMPACT TESTER

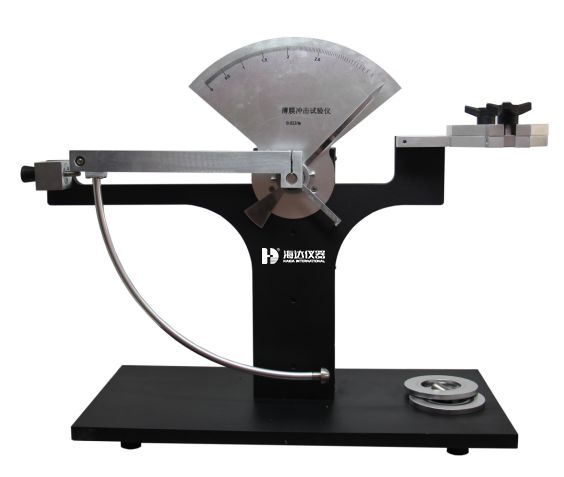

***picture for reference***
PRODUCT DESCRIPTION
This product uses a standard pendulum head and a certain weight of pendulum arm impact to measure the pendulum impact resistance of plastic films, sheets, and composite films. Such as the impact toughness of PE/PP composite films, aluminized films, aluminum-plastic composite films, nylon films, plastic rubber and other film materials used in food and medicine packaging bags, as well as metal foil materials. It can also be used to test the pendulum impact resistance of paper and paperboard, such as aluminized paper for cigarette packages, aluminum-plastic paper composite materials for Tetra Pak packaging, etc.
PRINCIPLE
This instrument uses a semi-spherical punch to impact and break the sample at a certain impact speed, thereby measuring the energy consumed by the punch, and using this energy to evaluate the anti-pendulum impact energy value of the film sample.
DESIGN STANDARD
GB/T8809, ASTM D3420
TECHNICAL PARAMETERS
| Item |
Description |
| Capacity |
3J |
| Scale value |
0.01J |
| Pendulum swing radius |
R280 mm |
| Pendulum angle |
90° |
| Impact speed |
2.5m/S |
| Impact head size |
Φ12.7 mm |
| Sample holder diameter |
Φ60, Φ89mm |
| Sample size |
100 X 100 mm |
| Dimensions |
780 X 250 X 600 mm |
| Weight |
35kg |
