Lab High-Current Arc Tester / Flammability Testing Equipment

Lab High-Current Arc Tester / Flammability Testing Equipment
Lab High-Current Arc Tester / Flammability Testing Equipment

Image Grand :  Lab High-Current Arc Tester / Flammability Testing Equipment

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: Haida
Certification: CE,,ISO
Numéro de modèle: 6009-HD
Conditions de paiement et expédition:
Quantité de commande min: 1
Prix: Négociable
Détails d'emballage: Chaque ensemble protégé avec des fibres de résine et du film PP, puis mis dans un boîtier en bois fo
Délai de livraison: 20 jours après confirmation de la commande
Conditions de paiement: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Capacité d'approvisionnement: 300 ensembles par mois

Lab High-Current Arc Tester / Flammability Testing Equipment

description de
Voltage d'essai: Pour les appareils électroniques Vitesse de séparation des électrodes: 254 mm ± 25 mm par seconde
Fréquence d'arc: Environ 40 arcs par minute Énergie: AC 220V,50 Hz,1 KVA
Électrodes d'essai 1: électrode fixe: conducteur de cuivre solide (Ø3,5 mm) avec une pointe bisseuse de 30° Électrodes d'essai 2: électrode mobile: tige en acier inoxydable (Ø3 mm) avec une pointe conique de 60°
Mettre en évidence:

Lab flammability testing equipment

,

High Current Arc Lab Testing Equipment

High-Current Arc Resistance to Ignition Tester

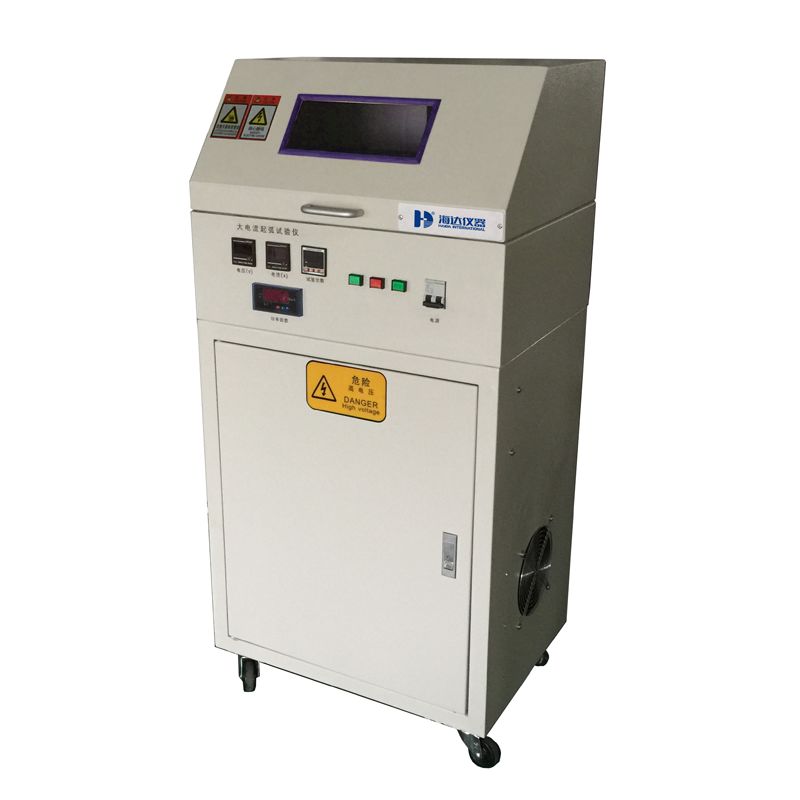

Product Description


This tester is designed to evaluate the arc resistance performance of electrical/electronic products, household appliances, and their materials. It simulates leakage currents between live parts of opposite polarity or between live parts and grounded metal components, measuring and assessing the arc resistance of insulating materials under specified voltages.

Test Standard


IEC 60950, GB/T 4943.

Product Specifications
Model 6009-HD
Test Voltage 220V-240V
Electrode Separation Speed 254mm ±25mm per second
Arc Frequency Approximately 40 arcs per minute.
Test Electrodes Fixed Electrode: Solid copper conductor (Ø3.5mm) with a 30° beveled tip
Moving Electrode: Stainless steel rod (Ø3mm) with a 60° conical tip
Electrodes are positioned at a 45° angle to the horizontal plane; tip curvature radius <0.1mm.
Short-Circuit Current Adjustable inductive load to achieve a power factor of 0.5 and short-circuit current of 33A
Key Features Integrated test chamber and load box (upper section for testing, lower for load). Enclosure: Painted steel with stainless steel/brass components. Electrodes: Copper (fixed) and stainless steel (moving), resistant to high temperatures and corrosion.
Power Supply AC 220V, 50Hz

Lab High-Current Arc Tester / Flammability Testing Equipment 0







About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Lab High-Current Arc Tester / Flammability Testing Equipment 1
Lab High-Current Arc Tester / Flammability Testing Equipment 2
Lab High-Current Arc Tester / Flammability Testing Equipment 3
Lab High-Current Arc Tester / Flammability Testing Equipment 4Lab High-Current Arc Tester / Flammability Testing Equipment 5




Why choose us?Lab High-Current Arc Tester / Flammability Testing Equipment 6
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined



FAQ:

Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
