EQUIPMENT DETAILS OF 5082-HD SECURE SEAL TESTER
Product Specifications
| Attribute |
Value |
| Function |
compression test, Paper Tube Compressive Strength Test, Burst tester, tensile test, Paper Testing Instrument |
| Name |
paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/ bursting strength tester, paper testing instrument |
| Display |
LCD, Digital display |
| Units switch |
Kgf, N. (Optional), Lbf |
| Testing speed |
10 ~ 200 mm/min |
| Dimension |
360*264*400mm, 70 *34 * 60 cm, 85*65*80cm |
| Measuring range |
250-5600 Kpa, 10 ~ 1000mN |
| Display mode |
LCD display, digital mode |
| Design criteria |
ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87 |
Product Description

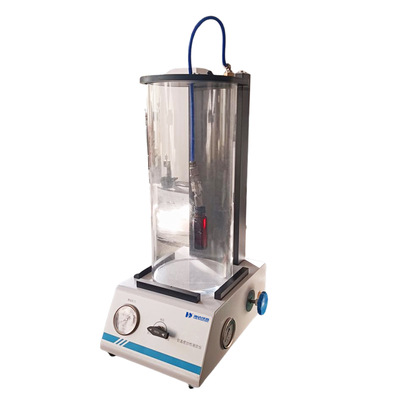

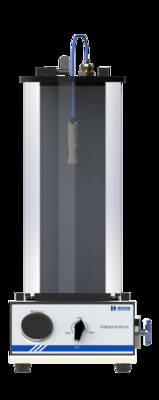

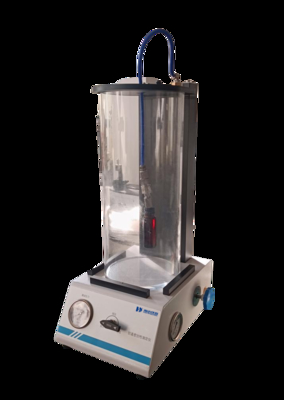

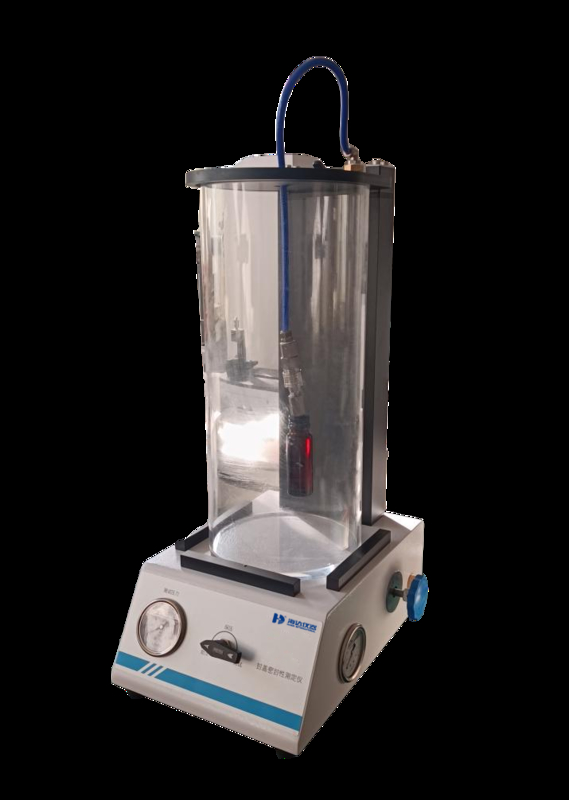

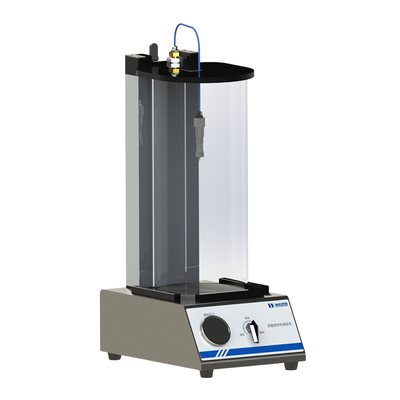

The 5082-HD Secure Seal Tester is designed for comprehensive testing of bottle and can sealing integrity to prevent air leakage and ensure packaging quality control. Suitable for PET bottles, glass bottles, cans, and crown caps.
Standard Specifications
Pressurization: Compressed air or carbon dioxide is used for inflation and pressurization
Positive pressure measurement: Avoids the deficiency of negative pressure measurement that the pressure is less than 1 bar
Test pressure range: 0-16bar (1.6Mpa)
Material: Made of oxidized aluminum, stainless steel and plastic materials, strong and durable
Pressure control: Equipped with pressure reducing valve for easy maximum test pressure setting
Flow control: Precise adjustable pressure increase speed (5-60 seconds to reach 1Mpa)
Safety features: Pressure reducing valve, safety valve, barrel cover safety latch, pressure-opening valve, exhaust holes
Pressure gauge division: 0.05Mpa
Pressure gauge display range: 0-1.6Mpa
Maximum sample size: 330 * 150mm (height* diameter)
Dimensions: 320 * 380 * 720 mm
Net weight: 15 kg
About Haida
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
