5076-HD Sanitary Tapware Lock Valve Core Life Test Machine
Product Specifications
| Attribute |
Value |
| Heat Source |
Ceramic heater |
| Display |
LCD screen |
| Testing Time |
Adjustable |
| Test Cyclic |
15000 cyclic (adjustable) |
| Application |
Laboratory, Kitchen |
| Testing Methods |
Impact Test, Heat Resistance Test, Salt Spray Test, Scratch Test, etc. |
| Testing Parameters |
Durability, Heat Resistance, Corrosion Resistance, Non-stick Coating Adhesion, etc. |
| Testing Standards |
ASTM, ISO, EN, GB |
| Machine Size |
1350mm*1050mm*2550mm |
| Power Supply |
AC 220V/50Hz |
Applications & Test Purpose
This machine performs life testing of lock valve cores and is widely used in hardware processing, electronics, appliances, equipment, cameras, watches, toys, measuring instruments, IT, military, aerospace, and automotive industries. It tests torque and service life of torsion springs, rotating shafts, and transmissions with adjustable speed, set force value testing, and peak (maximum) testing capabilities.
Standard Features
- Torque measurement range: 0-30N*M
- Minimum display torque: 0.01N*M
- Two independently controlled torque heads (adjustable center distance up to 210mm)
- Angle measurement range: 360° or unlimited
- Test speed: 720°/minute
- Servo motor drive
- Customizable torque head
- Main material: Aluminum alloy
- Transmission mode: Reduction gearbox
- Dimensions: 800*600*1930mm (L*W*H)
- Voltage: 380V, 50HZ, 5A

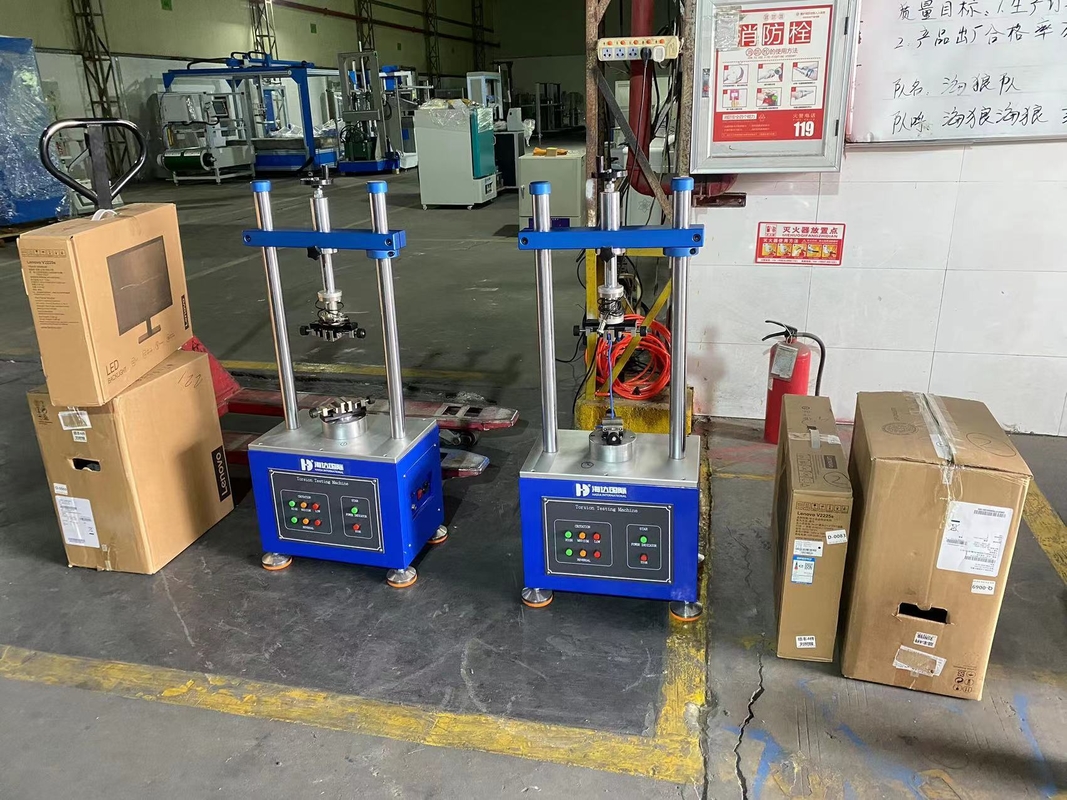

Product Images
Customer Testimonials
Why Choose Haida?
- Design & Production: Custom solution consultation, cost-performance recommendations, and special model R&D
- Shipping & Delivery: One-stop service from production to installation and training
- Warranty: 1 year warranty with lifetime technical support
- After-Sale Service: 2-hour response time with video inspection and on-site service options
Frequently Asked Questions
Q: How about your warranty?
A: Our standard warranty is one year, including technical support and parts replacement. On-site engineer service is available when necessary.
Q: What is the order process?
A: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
Q: Can we visit your factory before ordering?
A: Yes, we welcome factory visits and can assist with airport transfers and hotel arrangements.
Q: Do you accept customization service?
A: Yes, we offer both standard and fully customized machines tailored to your specific requirements.
About Haida International Equipment
Established in 2004 and located in Dongguan, Guangdong Province, China, Haida specializes in R&D and production of material physical properties testing equipment. With our own R&D center and four production lines (textile, footwear, leather, and mask testing equipment), we entered the international market in 2006.
