EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

Image Grand :  EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

Détails sur le produit:
Lieu d'origine: CHINE
Nom de marque: Haida
Certification: CE,,ISO
Numéro de modèle: 5095-HD
Conditions de paiement et expédition:
Quantité de commande min: 1
Prix: Négociable
Détails d'emballage: Chaque ensemble protégé avec des fibres de résine et un film PP, puis placés dans un boîtier en bois
Délai de livraison: 20 jours après la commande confirmée
Conditions de paiement: L / C, T / T, D / A, D / P, Western Union, Moneygram
Capacité d'approvisionnement: 300 ensembles par mois

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

description de
Taille effective du lieu de travail: 280*170*120 mm Précision de température: ± 0,2 °C
Angle de pendule: 150° Capacité: On est à 1-1.52,2-2,5/3-3,5 T/H
Force d'insertion: 0 à 50 kg Mode de synchronisation: Contre-up, contre-down
Normes de conception: HS 80 ± 5 Vitesse de test: 5 ~ 60 cycles / minutes
angle d'impact: 90 degrés Longueur du pendule: 200 mm
Données à éliminer: Processeur Angle de décollage: 90 °
Mesurer la tête tranchante: 35 °, 30 ° Taille de four: Φ45 mm*350 mm

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 0

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 1



DESCRIPTION

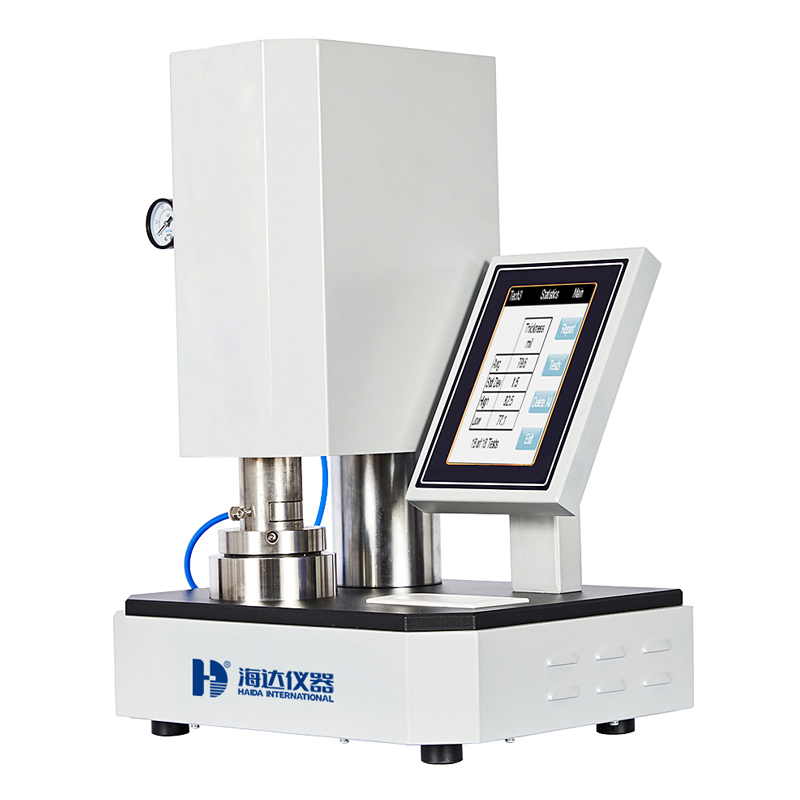

Thickness tester is used for thickness determination of film.

DESIGN STANDATD

GB/T 6672,ISO 4593

PRODUCT FEATURES

1. One-click test, easy to operate.

2. Cotex-M4 processor, improve the response speed of the instrument, accurate and fast calculation.

3. Automatic measurement, statistics, print test results, and has a data saving function

TECHNICAL PARAMETERS

Item

Description

Display

7-inch touch screen display

Measure range

(0~2)mm

Resolution

0.0001mm

Indication error

±1um

Repeatability

±1um

Measuring parallelism

0.002mm

Contact area

50 mm2

Contact pressure

film (17.5 ± 1) kPa

Probe descent rate

0.5~10mm/s(adjustable)

Data storage

50 times test data

Result Output

USB flash drive data export

Print

Thermal printer

l Communication interface

USB, WIFI(2.4G)

Dimension

365x255x440 mm(L*W*H)

Net weight

27Kg




Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 2 EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 3 EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 4
WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
