Aperçu ProduitsÉquipement d'essai de la flammabilité

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

Certificat
LA CHINE Hai Da Labtester certifications
LA CHINE Hai Da Labtester certifications
Examens de client
Oui nous avons reçu la machine la semaine dernière. Cette machine était intéressante, et remercie les serives après-vente, était très professionnelle.

—— Peter Maas

Au nom de la société pour visiter vos usines et entreprises, le personnel technique est très professionnel et patient, je pense que je serais heureux de coopérer avec vous à nouveau.

—— Steve Hubbard

Je suis en ligne une discussion en ligne

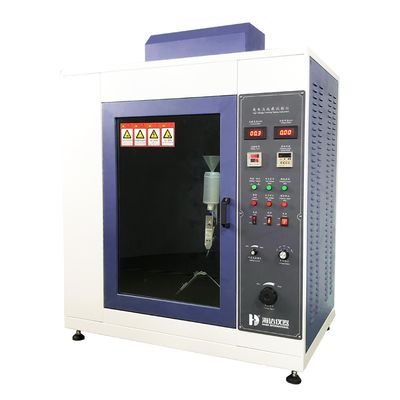

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric
High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

Image Grand :  High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: Haida
Certification: CE,,ISO
Numéro de modèle: 6008-HD
Conditions de paiement et expédition:
Quantité de commande min: 1
Prix: Négociable
Détails d'emballage: Chaque ensemble protégé avec des fibres de résine et du film PP, puis mis dans un boîtier en bois fo
Délai de livraison: 20 jours après confirmation de la commande
Conditions de paiement: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Capacité d'approvisionnement: 300 ensembles par mois

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

description de
Volume de la chambre: ≥ 0,5 m3, avec porte d'observation en verre Intervalle des gouttelettes: Réglable: 0 à 99,99 secondes
Papier à filtre: Dimensions standard; épaisseur: 0,15 à 0,17 mm Énergie: AC 220V,50 Hz,1 KVA
Mettre en évidence:

High Voltage Tracking Resistance Test Machine

,

flammability test Machine For Fabric

,

flammability tester For fabric

High Voltage Tracking Resistance Tester GB/T 6553-2003

Product Description


The High Voltage Tracking Resistance Tester is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. High Voltage Tracking Resistance Tester simulates harsh environmental conditions by applying liquid contaminants and inclined samples under power frequency (48Hz-62Hz) to assess the performance of electrical insulation materials.

Test Standard

The equipment is manufactured in accordance with GB/T 6553-2003 and IEC 60581:1984 standards.
Product Specifications

Model 6008-HD
Chamber Volume ≥0.5 m³, with a glass observation door.
Electrical Load Adjustable voltage range: 0-6000V ±5%. Overcurrent protection trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
Droplet Interval Adjustable: 0-99.99 seconds.
Filter Paper Standard dimensions; thickness: 0.15-0.17mm.
Electrodes Thickness: 0.5mm; spacing between upper and lower electrodes: 50±0.5mm (standard-compliant dimensions).
Droplet System Adjustable height; contaminant flow rate: 0.075-0.9 mL/min; pre-settable test duration.
Key Features Stainless steel construction for all components (electrodes, fasteners, screws, washers, nuts).
Power Supply AC 220V, 50Hz.

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 1High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 2High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 3High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 4High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 5High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 6




Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined



FAQ:

Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
