Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

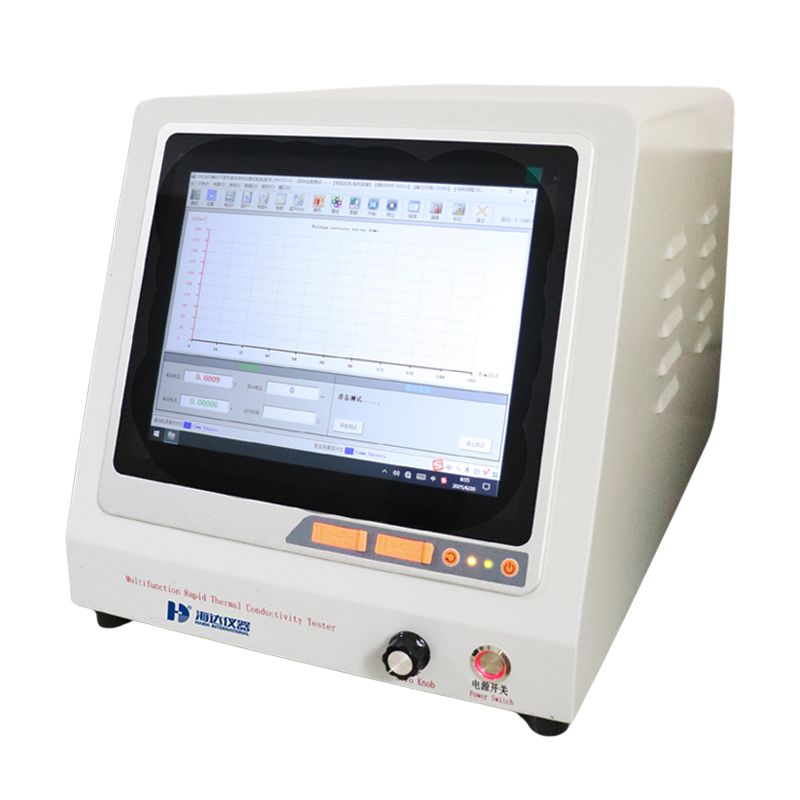

Image Grand : Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Haida
Certification:	CE,,ISO
Numéro de modèle:	60088-HD

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	Négociable
Détails d'emballage:	Chaque ensemble protégé avec des fibres de résine et du film PP, puis mis dans un boîtier en bois fo
Délai de livraison:	20 jours après confirmation de la commande
Conditions de paiement:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Capacité d'approvisionnement:	300 ensembles par mois

Contact

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

description de

Mode produit parozone:	Générateur de l'ozone ou méthode UV d'absorption	Mode d'essai A:	Température ambiante
Affichage:	Numérique	Test Speed:	Réglable
Produit:	équipement d'essai en caoutchouc	Méthode de contrôle:	Test automatique par ordinateur
La température a sonné:	Température normale ~ 200°C	Puissance de chauffage électrique:	Le système de freinage doit être équipé d'un dispositif de freinage de freinage.
Normes de test:	ASTM, ISO, GB, JIS, etc.
Mettre en évidence:	Haidathermal Conductivity Tester , surface temperature Thermal Conductivity Tester , Hot Disk Thermal Conductivity Tester

^{_{Thermal Conductivity Tester (Flat Plate Thermofluidometer Method)}}

The thermal conductivity tester adopts the transient plane heat source method, based on TPS transient plane heat source technology, and uses a Hot Disk probe. It can be used to test the thermal conductivity, thermal conductivity (thermal diffusion coefficient), specific heat capacity, thermal storage coefficient and thermal resistance of metals, alloys, graphite, thermal grease, silicone, silicone rubber, ceramics, rock and soil, rocks, polymers, paper, fabrics, foam plastics, concrete, composite panels, paper honeycomb panels and other solids, powders, liquids, pastes, coatings, films, thermal insulation materials, insulation materials, anisotropic materials, etc.

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 0

Technical Paramet

Item	Parameters
Thermal conductivity range	0.001~500 w/(m.k), resolution 0.0001w/(m.k)
Thermal diffusion coefficient range	0.1~100m2/s
Thermal storage coefficient range	0.1~30w/(m2.k)
Specific heat capacity range	0.1~5kJ/(kg.ºC)
Thermal resistance range	0.5~0.000005mm2.k/w
Temperature measuring accuracy	≤0.0001ºC
Measurement relative error	≤3%
Repeatability error	≤3%
Measuring time	1~120 seconds
Sample test temperature range	Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements)
Probe	Φ15mm
Various sample tests	a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample surface is required, and a special sample clamping device is provided. b. There are no special requirements for powder, paste, or liquid substances, and a special sample test box is provided. c. For thinner materials (thickness 0.01-1mm), special test plans and mathematical models are used for testing. d. For high-conductivity materials (100-500W), special test plans and mathematical models are used for testing. e. For thermal insulation materials (0.010-0.050W), special test plans and mathematical models are used for testing.
Control mode	Fully automatic test software, fast and accurate analysis of sample test process parameters and report output
Machine dimension	(LWH)38040450mm
Machine weight	Approx. 20KG
Power	AC 220V±10%, 50/60 Hz, 500W
