5104-HD Automatic Condom Thickness Tester for Industrial Use

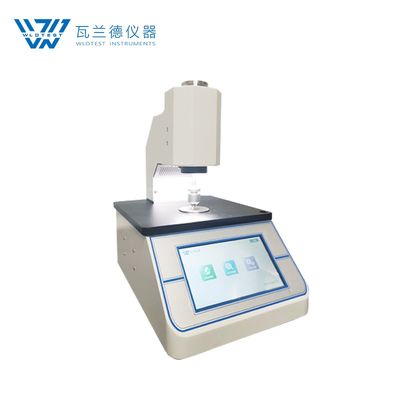

Image Grand : 5104-HD Automatic Condom Thickness Tester for Industrial Use

Détails sur le produit:

Place of Origin:	china
Nom de marque:	HAIDA
Certification:	CE
Model Number:	5104-HD

Conditions de paiement et expédition:

Minimum Order Quantity:	1set
Prix:	Négociable
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,T/T,D/P,Western Union,MoneyGram
Supply Ability:	30 Sets per Month

Contact

5104-HD Automatic Condom Thickness Tester for Industrial Use

description de

Model:	CAM-100	Beamsplitter:	Coated KBr
Working Stability:	0.1% of total fluorescence intensity	Time Repeatability:	0.01min
Analysis Time:	1-5 minutes	Detector:	High resolution DTGS detector
Pyrolysis Time Range:	0.01~99.99min	Cooling Rate:	< 3.5min (450˚C to 50˚C)
Software:	CAM Analysis Software	Ion Source:	EI, EI/CI mixed source, CI (PCI & NCI)
Light Source:	Element Lamp	Wavelength Range:	190nm-900nm
Detection Object:	Solid	Instrument Resolution:	144±5eV
Wavenumber Range:	7800~375 cm-1
Mettre en évidence:	5104-HD Automatic Condom , High Resolution Automatic Condom Thickness Tester , Automatic Condom Thickness Tester

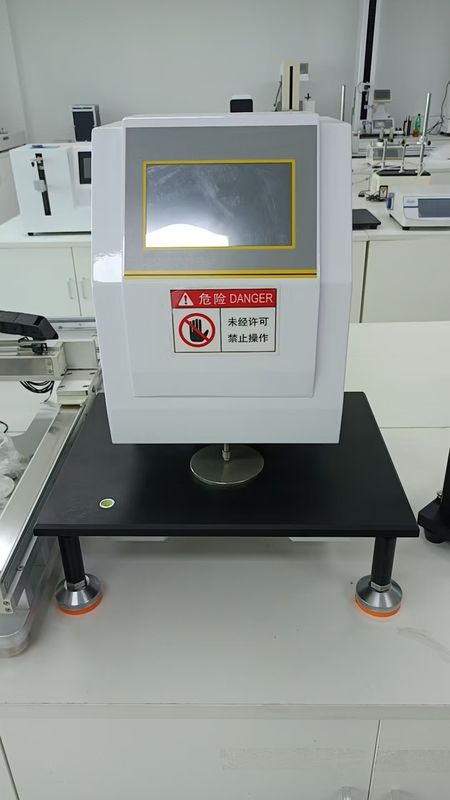

5104-HD AUTOMATIC CONDOM THICKNESS TESTER

PRODUCT DESCRIPTION

The automatic condom thickness tester adopts a mechanical measurement method and is suitable for precise thickness measurement of various materials within the specified range.

DESIGN STANDARD

GB 7544, ISO 4074

FEATURES

Measuring head automatically lifts and lowers during testing, eliminating human-induced system errors
Includes micro printer for quick printing of measurement results and calculation of size and average values
Supports multiple practical functions including real-time data display, automatic statistics, and printing
Designed according to standard contact area and measurement pressure, with support for non-standard customizations
Includes dedicated automatic sampler for fully automatic multi-point measurement with minimal human error
Equipped with standard RS232 interface for external system connections and computer data transmission

TECHNICAL PARAMETERS

Item	Description
Test Range	0~5mm
Measuring Pressure	17.5±1kPa
Resolution	0.1 μm
Accuracy	±1μm
Contact area	50mm²
Speed	10 c/min
Power	AC 220V 50Hz
Dimension (LWH)	450340390mm
Weight	30Kg
